Heavy Duty Document Shredders

HSM DuoShredder 5750 - 4,6 x 34 mm

Heavy Duty Document Shredders

HSM DuoShredder 5750 - 4,6 x 34 mm

500 "

Datasheet

Request product

Scroll to the desired section:

Technical data

Product highlights

Zweistufige, vollautomatische Aktenentsorgungsanlage. Je nach Materialart kann eine praktische Durchsatzmenge von bis zu 650 kg/h erreicht werden. In Kombination mit einer HSM Ballenpresse wird der HSM DuoShredder 5750 zur vollständigen Entsorgungsanlage.

Reliably shreds whole lever arch files and telephone books.
The material can be loaded with a conveyor belt or discharge chute.
The entire system is controlled automatically.
Modern PLC control unit for integrated control of all system components.

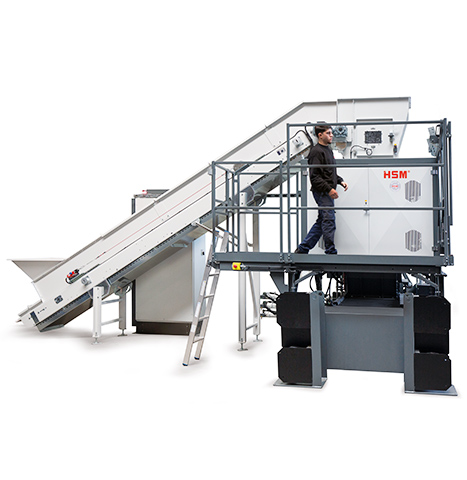

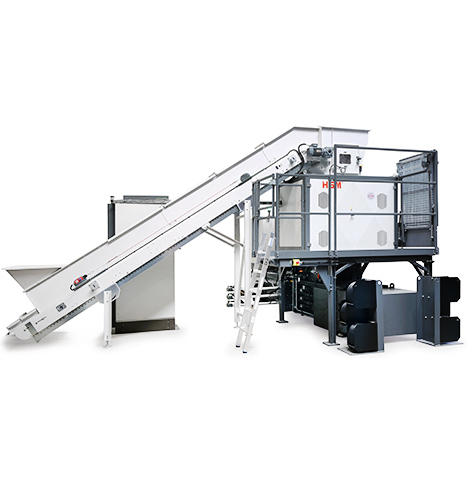

Two-stage fully automated shredding system.
Sturdy loading hopper with built-in overloading protection to control the shredder and the conveyor belt.

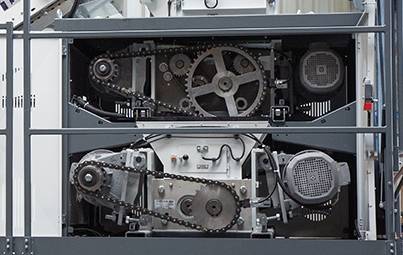

Equipped as standard with energy saving frequency-regulated drive.

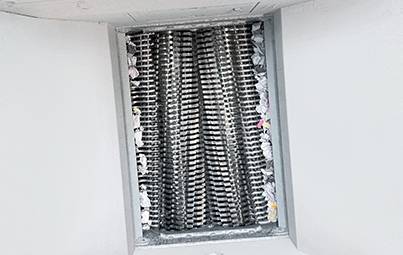

Stage 2: fine shredding using a two-shaft system.
Can be used as a complete disposal system in combination with an HSM balling press.
Stage 1: pre-shredding using a four-shaft system consisting of two intake shafts and two cutting shafts.

Products in comparison

Product attributes	HSM DuoShredder 5750 - 6 x 40-53 mm	HSM DuoShredder 5750 - 4,6 x 34 mm	HSM TriShredder 6060 - 7,5 x 40-80 mm
Order number:	1678000	1678001	1560000
Cutting type:	Partikelschnitt	Partikelschnitt	Partikelschnitt
Cutting size:	-	-	-
Security level (DIN 66399 / ISO/IEC 21964):	E-2\|O-2\|P-3\|T-3	E-3\|F-1\|O-3\|P-4\|T-4	E-2\|O-2\|P-3\|T-3
Intake width:	500 "	500 "	650 "
