Channel baling presses

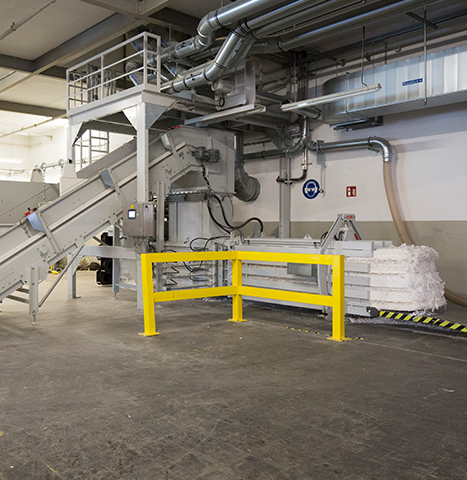

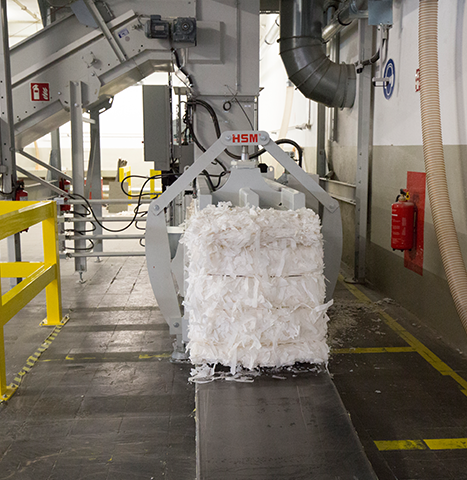

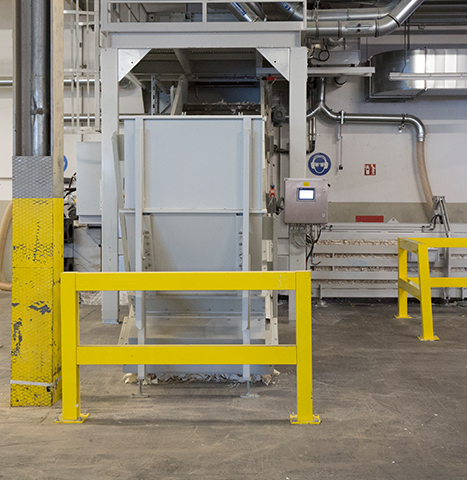

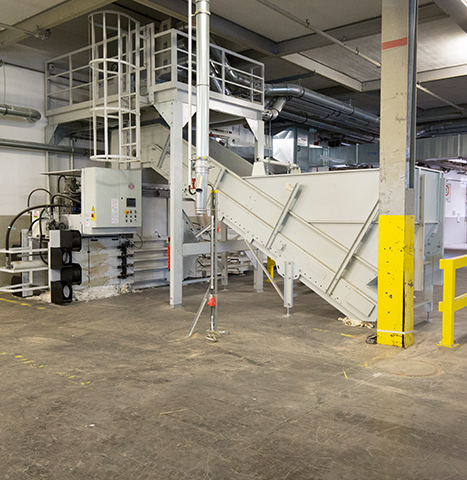

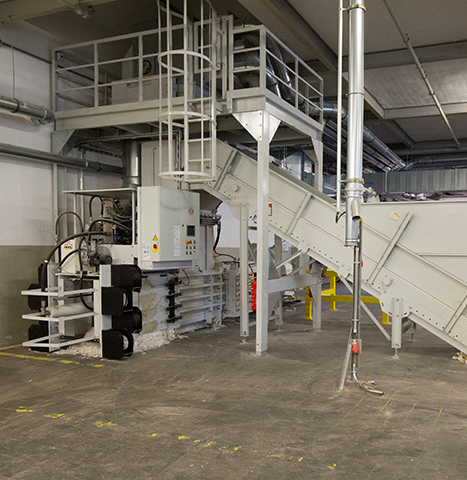

HSM VK 3008

Channel baling presses

310 t

max: 350 lb

B: 700 " H: 800 " L: 1200 "

Scroll to the desired section:

Für Industrieanwendungen mit kleinem bis mittlerem Materialaufkommen - Durchsatz bis ca. 197 m³/h

Can be fully integrated into existing workflows and processes. Operating side can be selected
Fast cycle times, 800 mm loading aperture
Suitable for continuous loading with conveyor belt, air feeding or similar
Integration into automated industrial production processes
High compression and bale weights
Control of the pressing process via light barrier
Particularly suitable for compression of paper, cardboard and plastic film
Versatile solution for materials up to approx. 50 kg /m³ bulk weight
Suitable for almost all requirements. Contact us if you have other materials or applications. We will find you a suitable solution.

Product attributes	HSM VK 2310	HSM VK 3008	HSM VK 3012
Order number:	6650002	6644000	6645000
Pressing power:	240 t	310 t	310 t
Maximum bale weight:	250 lb	350 lb	350 lb
Bale size (WxHxL):	750 x 500 x 1200 "	700 x 800 x 1200 "	700 x 800 x 1200 "
Number of strappings:	3	4	4
Strapping material:	Horizontal	Horizontal	Horizontal

Consumable Materials

Strapping wire 2,8 mm 40 Kg - VK 12/VK 23/VK 30/VK 42
