HSM VK 3012

Channel baling presses

310 t

max: 350 lb

B: 700 " H: 800 " L: 1200 "

Scroll to the desired section:

Für Industrieanwendungen mit kleinem bis mittlerem Materialaufkommen - Durchsatz bis ca. 166 m³/h

Can be fully integrated into existing workflows and processes. Operating side can be selected
Suitable for continuous loading with conveyor belt, air feeding or similar

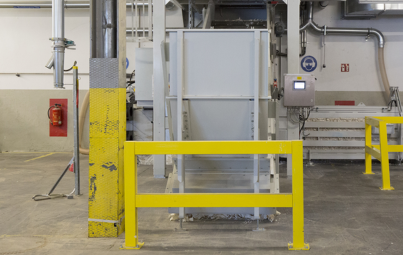

With large loading aperture for optimised feeding methods (1140 mm length)

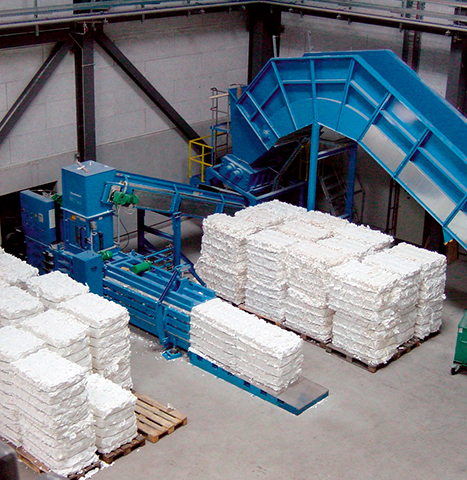

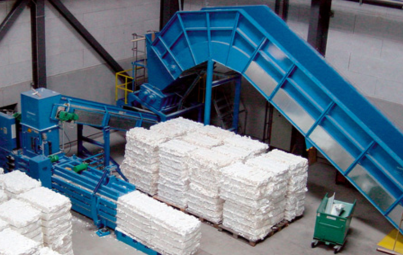

Integration into automated industrial production processes
High compression and bale weights
Control of the pressing process via light barrier
Particularly suitable for compression of paper, cardboard and plastic film
Versatile solution for materials up to approx. 50 kg /m³ bulk weight
Suitable for almost all requirements. Contact us if you have other materials or applications. We will find you a suitable solution.

Product attributes	HSM VK 3008	HSM VK 3012	HSM VK 4012
Order number:	6644001	6645000	6406000
Pressing power:	310 t	310 t	450 t
Maximum bale weight:	350 lb	350 lb	400 lb
Bale size (WxHxL):	700 x 800 x 1200 "	700 x 800 x 1200 "	900 x 720 x 1200 "
Number of strappings:	4	4	3
Strapping material:	Horizontal	Horizontal	Horizontal

Consumable Materials

Strapping wire 2,8 mm 40 Kg - VK 12/VK 23/VK 30/VK 42
