Vertical balers

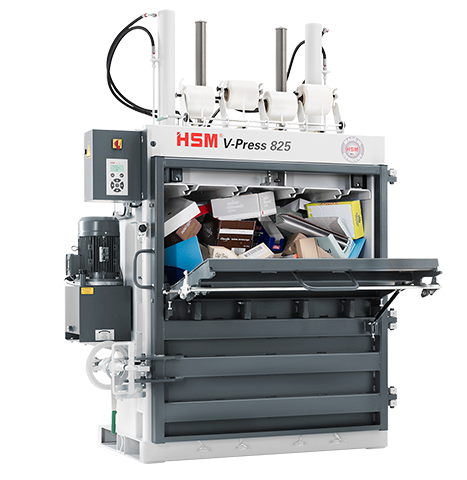

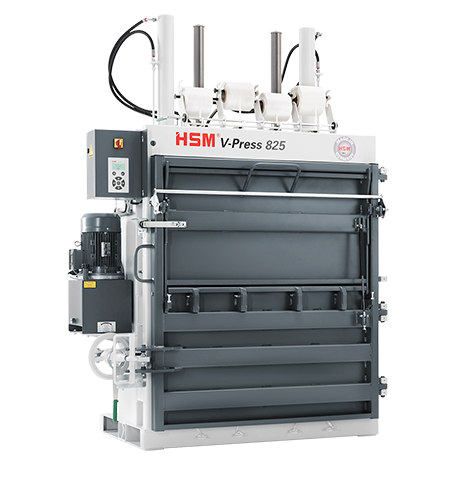

HSM V-Press 825 plus

Vertical balers

250 t

max: 280 lb

B: 700 " H: 780 " L: 1200 "

B: 1705 " T: 1050 " H: 2385 "

Scroll to the desired section:

Die HSM V-Press 825 zeichnet sich durch die sehr geringe Transporthöhe aus.

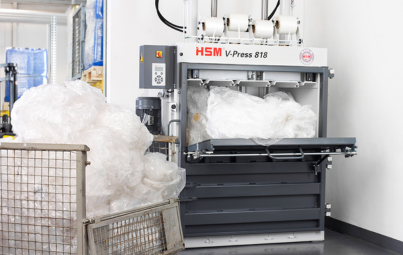

To fill the press, the upper half of the doors is folded down
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
Massive press ram and extremely robust press plate guidance
HSM TCS (Torsion Control System) for monitoring press ram movement
Manual bale strapping with continuous polyester tape
Suitable for cardboard as well as film

Product attributes	HSM V-Press 820 plus	HSM V-Press 825 plus	HSM V-Press 830 plus
Order number:	6043414	6052414	6056214
Pressing power:	178 t	250 t	300 t
Maximum bale weight:	250 lb	280 lb	320 lb
Bale size (WxHxL):	1000 x 780 x 1200 "	700 x 780 x 1200 "	1100 x 780 x 1200 "
Loading aperture (WxH):	1195 x 558 "	1195 x 530 "	1195 x 530 "
Number of strappings:	4	4	4
Type of consumables:	Umreifungsband	Umreifungsband	Ösendraht
Motor:	4 kW	-	4 kW
Voltage / Frequency:	400 V / 50 Hz	400 V / 50 Hz	400 V / 50 Hz
Cycle time:	23 s	39 s	47.5 s
Dimensions of machine (WxDxH):	1700 x 1075 x 2499 "	1705 x 1050 x 2385 "	1717 x 1247 x 2570 "
Machine weight:	1300 lb	1117 lb	1445 lb

Consumable Materials

Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 718 plus C/V-Press 818/V-Press 820/V-Press 825/V-Press 830
