Vertical balers

HSM V-Press 820 plus

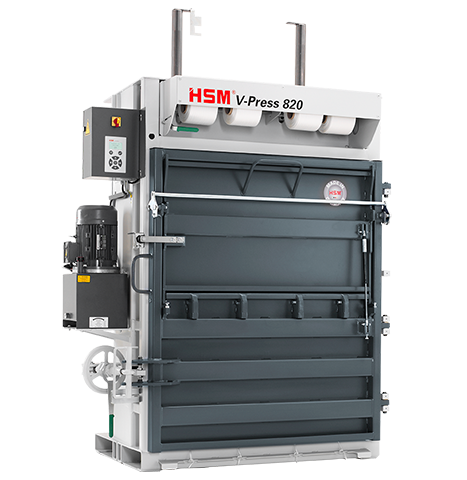

  • HSM V-Press 820 plus P1
  • HSM V-Press 820 plus P2

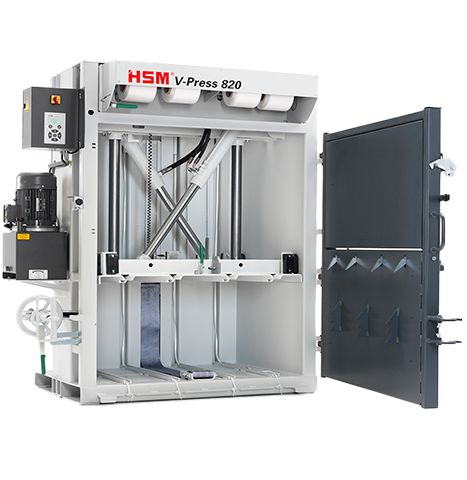

  • HSM V-Press 820 plus P3
  • YouTube Video Thumbnail
  • HSM V-Press 820 plus P1
  • HSM V-Press 820 plus P2
  • HSM V-Press 820 plus P3
  • HSM V-Press 820 plus P1
    play
Vertical balers

HSM V-Press 820 plus

Weight
178 t
Weight
max: 250 lb
Weight
B: 1000 " H: 780 " L: 1200 "
Weight
B: 1700 " T: 1075 " H: 2499 "
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

Die HSM V-Press 820 vereint durch ihren starken Motor, die platzsparende Bauweise und einer ausgereiften und innovativen Technik alle Vorteile einer Ballenpresse in sich.

  • The powerful system is designed as Plug&Press and can be put into operation immediately at the installation location

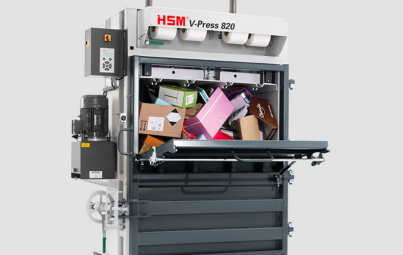

  • Füllklappe
    To fill the press, the upper half of the doors is folded down
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine

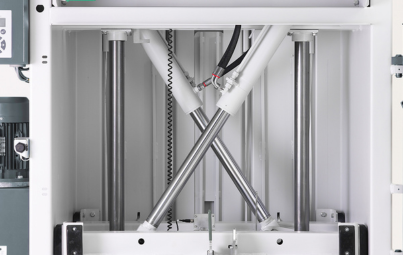

  • Gekreuzte Zylinder
    Quick and easy installation due to crossed cylinders

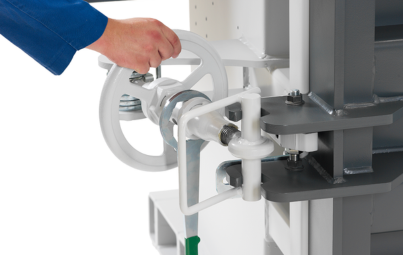

  • V-Press - Handrad
    Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing

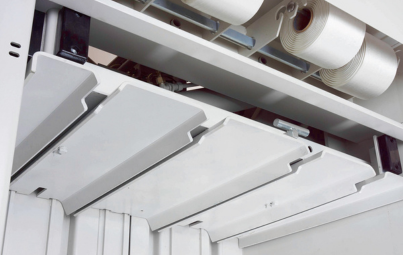

  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement

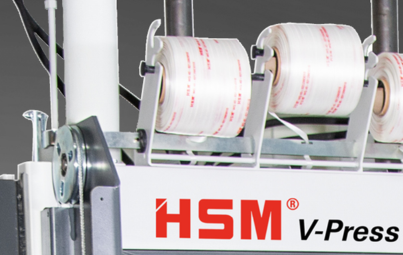

  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 818 plus pro P1
HSM V-Press 818 plus pro
HSM V-Press 820 plus P1
HSM V-Press 820 plus
HSM V-Press 825 plus P1
HSM V-Press 825 plus
Order number: 6050214 6043414 6052414
Pressing power: 185 t 178 t 250 t
Maximum bale weight: 200 lb 250 lb 280 lb
Bale size (WxHxL): 700 x 780 x 1200 " 1000 x 780 x 1200 " 700 x 780 x 1200 "
Loading aperture (WxH): 1195 x 540 " 1195 x 558 " 1195 x 530 "
Number of strappings: 4 4 4
Type of consumables: Umreifungsband Umreifungsband Umreifungsband
Motor: 4 kW 4 kW -
Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz 400 V / 50 Hz
Cycle time: 27 s 23 s 39 s
Dimensions of machine (WxDxH): 1709 x 1248 x 2370 " 1700 x 1075 x 2499 " 1705 x 1050 x 2385 "
Machine weight: 1210 lb 1300 lb 1117 lb

Consumable materials

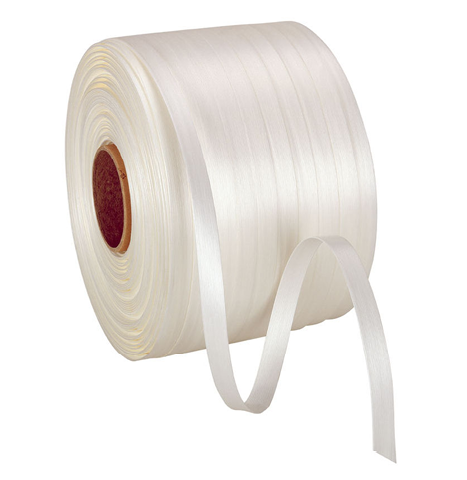

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 718 plus C/V-Press 818/V-Press 820/V-Press 825/V-Press 830
