Vertical balers

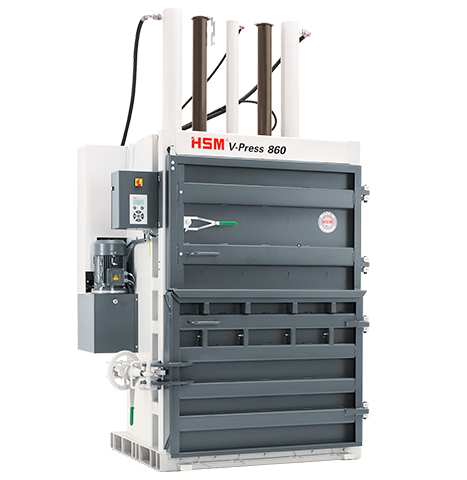

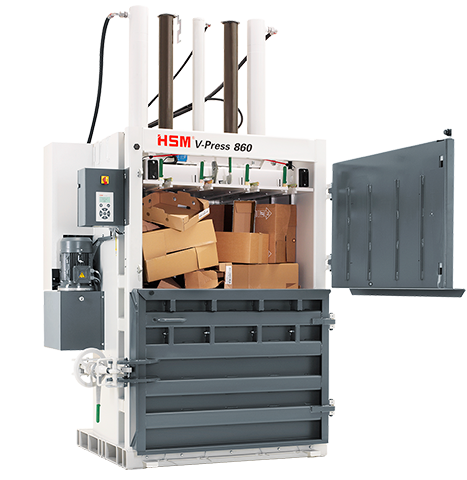

HSM V-Press 860 eco

  • HSM V-Press 860 eco
  • HSM V-Press 860 eco
  • HSM V-Press 860 eco
  • YouTube Video Thumbnail
  • HSM V-Press 860 eco
  • HSM V-Press 860 eco
  • HSM V-Press 860 eco
  • HSM V-Press 860 eco
    play
Vertical balers

HSM V-Press 860 eco

Weight
60 t
Weight
max: 1058 lb
Weight
B: 47.24 " H: 30.71 " L: 47.24 "
Weight
B: 70.75 " T: 53.66 " H: 117.52 "
Datasheet
Request product

Scroll to the desired section:

Technical data
Please select
blocks.contact_search.dropdown_alt

Product highlights

The HSM V-Press 860 combines high compaction force, a large loading aperture, and a high level of operating convenience. Rapid stroke technology, retaining claws, and the HSM TCS (TorsionControlSystem) enable particularly economical baling operation. The wide-opening double door with self-locking closure technology and automatic start function allows convenient loading. The door lock with handwheel ensures secure locking.

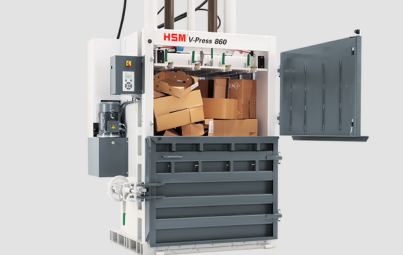

  • Doppeltüre
    To fill the press, the upper half of the doors is swung to the right
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • V-Press - Eilgang
    With rapid traverse technology, the balers achieve short cycle times and support demand-oriented energy use in daily operation
  • V-Press - Handrad
    Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
  • Hoch verdichtete Ballen
    Optimised bale dimensions and bale weights for efficient storage, transport and direct commercialisation
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • Umreifung Draht oder Band
    Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
  • V-Press - Verpresst Kartonage/Folie

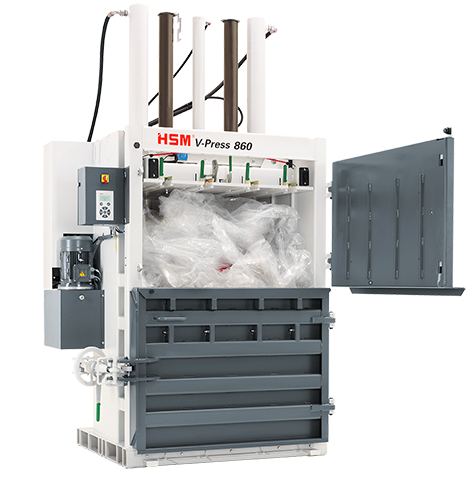

    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 825 plus pro P1
HSM V-Press 825 plus pro
HSM V-Press 860 eco
HSM V-Press 860 eco
HSM V Press 860 plus
HSM V-Press 860 plus
Order number: 6152313 6148113 6148213
Pressing power: 25 t 60 t 60 t
Maximum bale weight: 617 lb 1058 lb 1058 lb
Bale size (WxHxL): 27.56 x 30.71 x 47.24 " 47.24 x 30.71 x 47.24 " 47.24 x 30.71 x 47.24 "
Loading aperture (WxH): 47.05 x 21.26 " 47.05 x 25.59 " 47.05 x 25.59 "
Number of strappings: 4 4 4
Type of consumables: strapping tape strapping wire strapping wire
Motor: 6.44 HP 6.44 HP 6.44 HP
Voltage / Frequency: 480 V / 60 Hz 480 V / 60 Hz 480 V / 60 Hz
Cycle time: 39 s 25 s 25 s
Dimensions of machine (WxDxH): 67.28 x 49.13 x 93.31 " 70.75 x 53.66 x 117.52 " 68.94 x 62.17 x 117.52 "
Machine weight: 2667.59 lb 4188.78 lb 4475.38 lb
