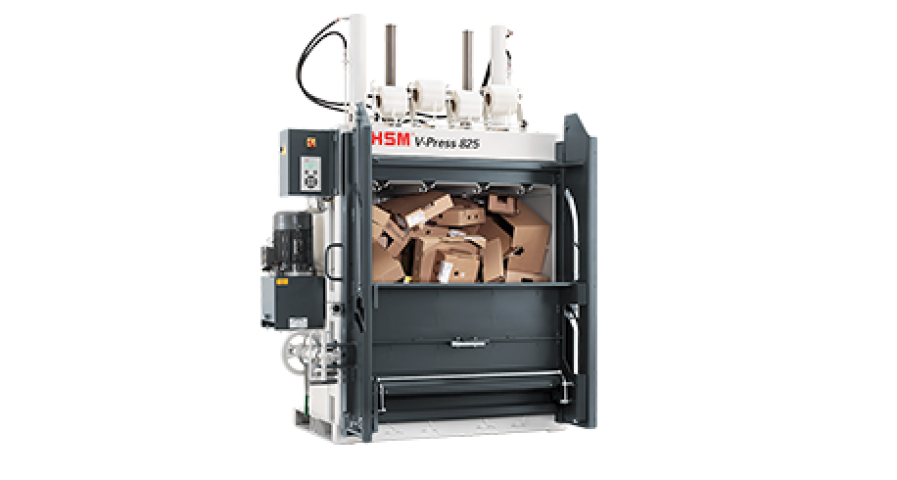

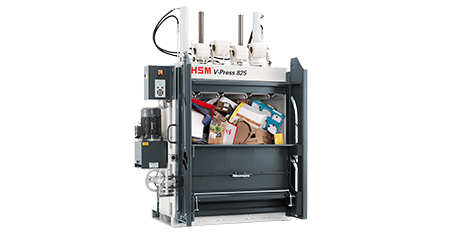

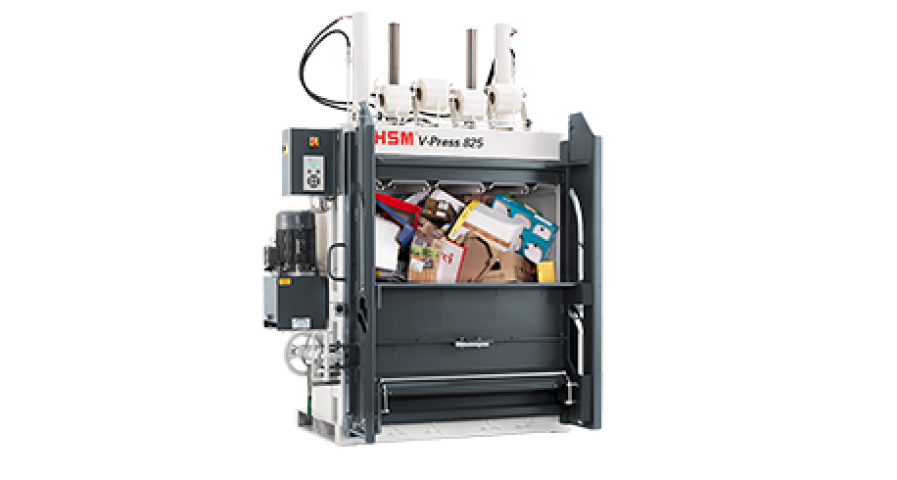

HSM V-Press 825 plus pro

Vertical balers

25 t

max: 617 lb

B: 27.56 " H: 30.71 " L: 47.24 "

B: 67.28 " T: 49.13 " H: 93.31 "

Scroll to the desired section:

The HSM V-Press 825 is characterized by its very low transport height.

Low installation height and small footprint
Voor het vullen van de pers wordt de bovenste helft van de deur omlaag geschoven en opent automatisch na het persprocess
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
Massive press ram and extremely robust press plate guidance
HSM TCS (Torsion Control System) for monitoring press ram movement
Manual bale strapping with continuous polyester tape
Suitable for cardboard as well as film

Product attributes	HSM V-Press 825 plus	HSM V-Press 825 plus pro	HSM V-Press 860 eco
Order number:	6152213	6152313	6148113
Pressing power:	25 t	25 t	60 t
Maximum bale weight:	617 lb	617 lb	1058 lb
Bale size (WxHxL):	27.56 x 30.71 x 47.24 "	27.56 x 30.71 x 47.24 "	47.24 x 30.71 x 47.24 "
Loading aperture (WxH):	47.05 x 20.87 "	47.05 x 21.26 "	47.05 x 25.59 "
Number of strappings:	4	4	4
Type of consumables:	strapping tape	strapping tape	strapping wire
Motor:	6.44 HP	6.44 HP	6.44 HP
Voltage / Frequency:	480 V / 60 Hz	480 V / 60 Hz	480 V / 60 Hz
Cycle time:	39 s	39 s	25 s
Dimensions of machine (WxDxH):	66.93 x 41.18 x 93.31 "	67.28 x 49.13 x 93.31 "	70.75 x 53.66 x 117.52 "
Machine weight:	2358.94 lb	2667.59 lb	4188.78 lb
