Vertical balers

HSM V-Press 504

  • HSM V-Press 504 P1
  • HSM V-Press 504 P2
  • HSM V-Press 504 P3
  • YouTube Video Thumbnail
  • HSM V-Press 504 P1
  • HSM V-Press 504 P2
  • HSM V-Press 504 P3
  • HSM V-Press 504 P1
    play
Vertical balers

HSM V-Press 504

Weight
4 t
Weight
max: 132 lb
Weight
B: 19.69 " H: 23.62 " L: 27.56 "
Weight
B: 40.16 " T: 29.76 " H: 78.43 "
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

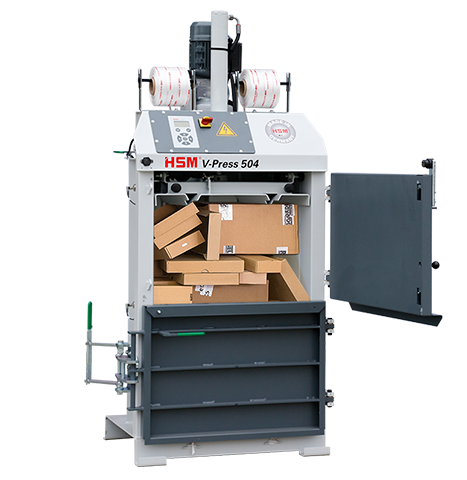

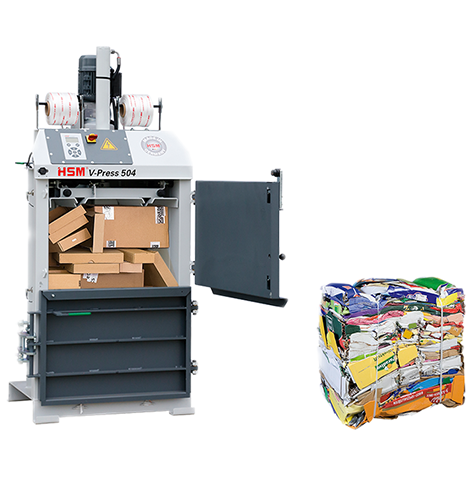

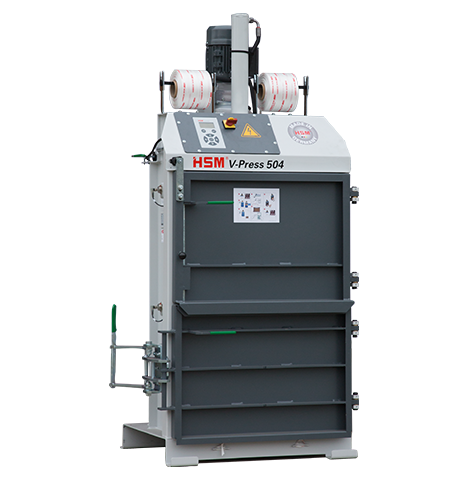

The HSM V-Press 504 vertical baling press with mechanical bale ejector enables cost-effective disposal of packaging waste while requiring minimal space. Thanks to the modern control system with illuminated display, operation is intuitive and user-friendly.

  • The powerful system is designed as Plug&Press and can be put into operation immediately at the installation location

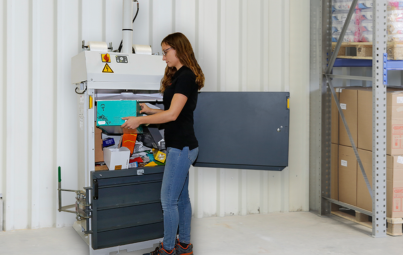

  • V-Press 503/504 - Doppeltüre
    To fill the press, the upper half of the doors is swung to the right

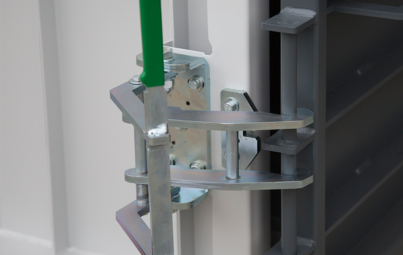

  • V-Press 503/504 - Kniehebel
    Bell-crank lever for quick and safe opening of the door

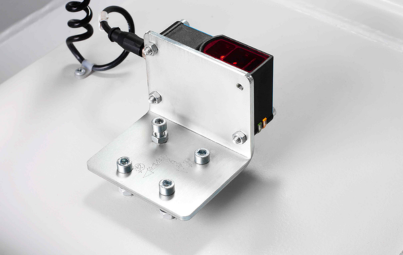

  • V-Press 504 - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 504 P1
HSM V-Press 504
HSM V-Press 610 P1
HSM V-Press 610
Order number: 6151213 6110123
Pressing power: 4 t 12 t
Maximum bale weight: 132 lb 220 lb
Bale size (WxHxL): 19.69 x 23.62 x 27.56 " 23.62 x 23.62 x 31.5 "
Loading aperture (WxH): 27.56 x 18.5 " 31.5 x 19.49 "
Number of strappings: 2 3
Type of consumables: strapping tape strapping tape
Motor: - 5.1 HP
Voltage / Frequency: 120 V / 60 Hz 480 V / 60 Hz
Cycle time: 27 s 22 s
Dimensions of machine (WxDxH): 40.16 x 29.76 x 78.43 " 47.17 x 32.4 x 78.19 "
Machine weight: 683.43 lb 1190.49 lb

Consumable materials

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 718 plus C/V-Press 818/V-Press 820/V-Press 825/V-Press 830
