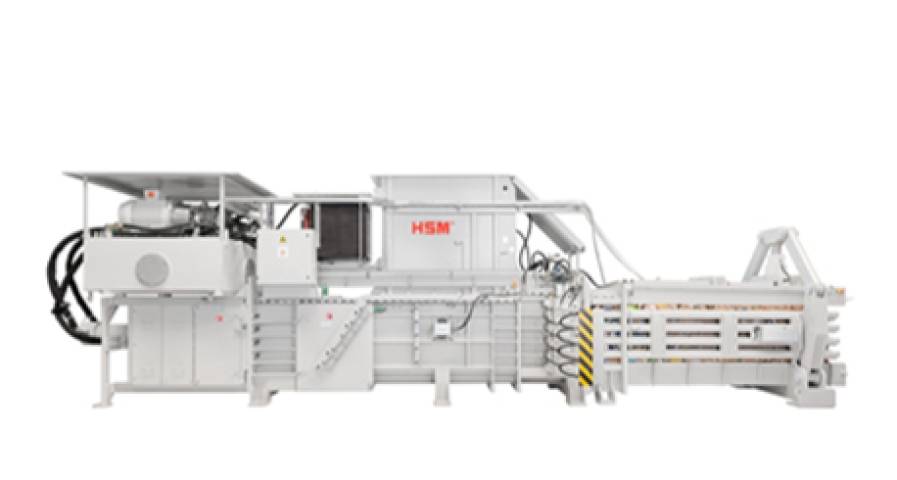

HSM VK 12018

Channel baling presses

122 t

max: 2425 lb

B: 43.31 " H: 43.31 " L: 78.74 "

Scroll to the desired section:

For professional disposal management or larger industrial applications with high throughput rates - Throughput up to approx. 29,588 ft³/h

Fully automatic 5-fold strapping for optimal bale result also with expansive materials
Available as an option with frequency-regulated drive – saves 40 % of the energy used by standard drives
Control of the pressing process via light barrier. Suitable for continuous loading with conveyor belt, air feeding or similar
Gimballed press cylinder system - Reduced wear on the pressing cylinder and press ram guides
Suitable for cardboard, plastic film and compressing DSD goods, UBC as well as PET bottles (other materials on request)
Versatile solution for materials up to approx. 60 kg /m³ bulk weight
Available as an option with cross strapping
Solid steel construction with extremely wear-resistant, replaceable steel

Efficient, sustainable and low-noise

According to our in-depth market observations, the machine from HSM is unbeatable in terms of solidity, efficiency and safety.

Hans-Peter Kremer
Technical Developer
