Vertical balers

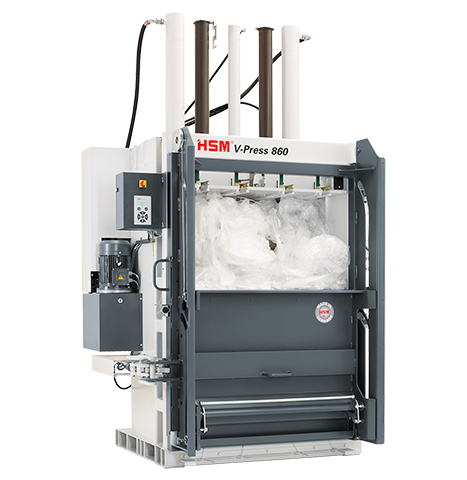

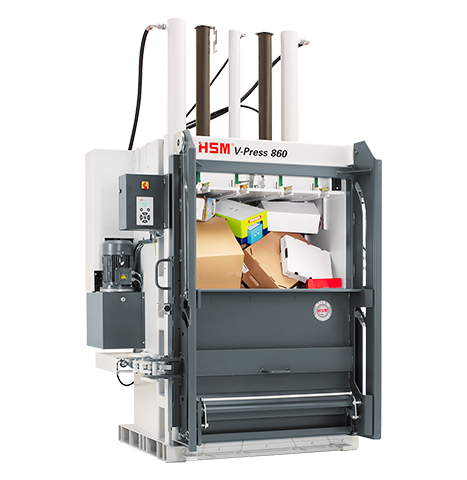

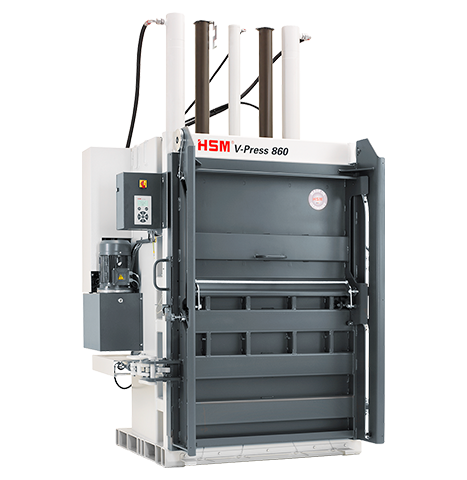

HSM V-Press 860 max

Vertical balers

HSM V-Press 860 max

Vertical balers

HSM V-Press 860 max

594 t

480 lb

1801 x 1248 x 2990 "

1195 x 650 "

Datasheet

Request product

Scroll to the desired section:

Technical data

Consumable materials

Product highlights

Die HSM V-Press 860 vereint hohe Presskraft, eine große Einfüllöffnung und hohen Bedienkomfort. Eilgang-Technologie, Rückhaltekrallen und HSM TCS (TorsionControlSystem) ermöglichen einen besonders wirtschaftlichen Pressbetrieb. Die leichtgängige Schiebetür mit Automatikstart spart Platz und erleichtert die Befüllung. Der hydraulische Türverschluss verriegelt die Tür mühelos und sicher.

To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
With rapid traverse technology, the balers achieve short cycle times and support demand-oriented energy use in daily operation
Optimised bale dimensions and bale weights for efficient storage, transport and direct commercialisation
Hydraulic door lock - Convenient opening and closing, no manual effort required
HSM TCS (Torsion Control System) for monitoring press ram movement
Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements
Suitable for cardboard as well as film

Products in comparison

Product attributes	HSM V-Press 860 plus	HSM V-Press 860 max	HSM V-Press 1160 eco
Order number:	6048204	6048314	6044114
Pressing power:	594 t	594 t	594 t
Maximum bale weight:	480 lb	480 lb	550 lb
Width x Depth x Height:	1800 x 1253 x 2990 "	1801 x 1248 x 2990 "	1780 x 1388 x 2985 "
Loading aperture (WxH):	1195 x 645 "	1195 x 650 "	1195 x 650 "

Consumable materials

Consumable Materials

Pre-looped wire 2,80x3700 - V-Press 840/V-Press 860/V-Press 860 S/P/V-Press 860 max C/VL 225/VL 500

Learn more
