Vertical balers

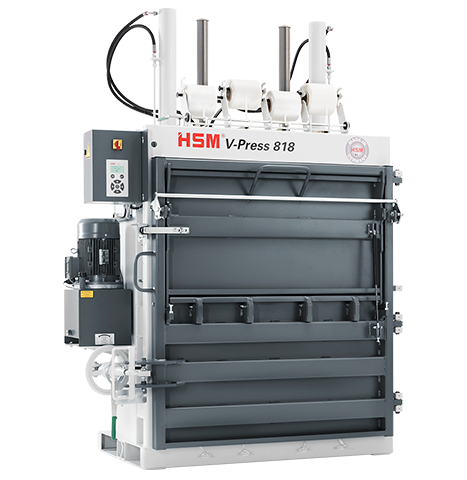

HSM V-Press 818 plus

Vertical balers

185 t

max: 200 lb

B: 700 " H: 780 " L: 1200 "

B: 1700 " T: 1046 " H: 2370 "

Scroll to the desired section:

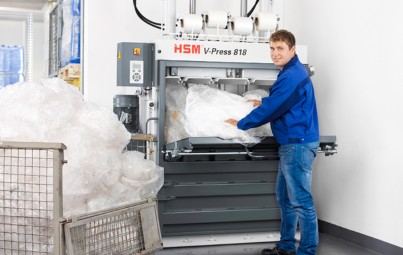

Dank einer sehr geringen Transporthöhe kann die HSM V-Press 818 problemlos zu jedem Einsatzort transportiert werden.

Low installation height and small footprint

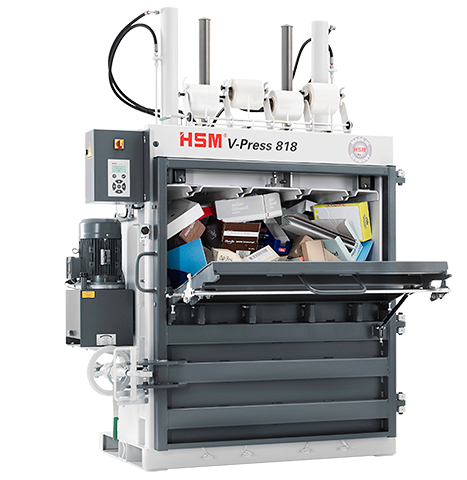

To fill the press, the upper half of the doors is folded down
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
Massive press ram and extremely robust press plate guidance
HSM TCS (Torsion Control System) for monitoring press ram movement
Manual bale strapping with continuous polyester tape
Suitable for cardboard as well as film

Product attributes	HSM V-Press 610	HSM V-Press 818 plus	HSM V-Press 820 plus
Order number:	6110164	6050414	6043414
Pressing power:	120 t	185 t	178 t
Maximum bale weight:	100 lb	200 lb	250 lb
Bale size (WxHxL):	600 x 600 x 800 "	700 x 780 x 1200 "	1000 x 780 x 1200 "
Loading aperture (WxH):	800 x 495 "	1195 x 530 "	1195 x 558 "
Number of strappings:	3	4	4
Type of consumables:	Umreifungsband	Umreifungsband	Umreifungsband
Motor:	3 kW	4 kW	4 kW
Voltage / Frequency:	400 V / 50 Hz	400 V / 50 Hz	400 V / 50 Hz
Cycle time:	22 s	27 s	23 s
Dimensions of machine (WxDxH):	1198 x 823 x 1986 "	1700 x 1046 x 2370 "	1700 x 1075 x 2499 "
Machine weight:	540 lb	1070 lb	1300 lb

Consumable Materials

Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 718 plus C/V-Press 818/V-Press 820/V-Press 825/V-Press 830

Learn more
