Vertical balers

HSM V-Press 504

  • HSM V-Press 504 P1
  • HSM V-Press 504 P2
  • HSM V-Press 504 P3
  • YouTube Video Thumbnail
  • HSM V-Press 504 P1
  • HSM V-Press 504 P2
  • HSM V-Press 504 P3
  • HSM V-Press 504 P1
    play
Vertical balers

HSM V-Press 504

Weight
40 t
Weight
max: 60 lb
Weight
B: 600 " H: 500 " L: 700 "
Weight
B: 1020 " T: 812 " H: 1922 "
Special Features
blocks.contact_search.dropdown_alt
  • Automatic bale ejection
  • bale removal trolley
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

Die Vertikal-Ballenpresse HSM V-Press 504 mit Standard-Stromanschluss ermöglicht eine wirtschaftliche Entsorgung von Verpackungsmüll bei gleichzeitig minimalem Platzbedarf. Aufgrund der modernen Steuerung mit Leuchtdisplay gestaltet sich die Bedienung intuitiv und benutzerfreundlich.

Produktvariante mit mechanischem Ballenauswerfer

  • The powerful system is designed as Plug&Press and can be put into operation immediately at the installation location
  • V-Press 503/504 - Doppeltüre
    To fill the press, the upper half of the doors is swung to the right
  • V-Press 503/504 - Kniehebel
    Bell-crank lever for quick and safe opening of the door

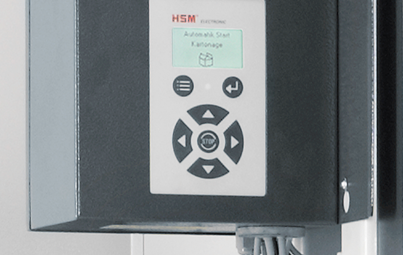

  • Mikroprozessor
    Modern microprocessor controller with membrane keypad and text display
  • V-Press 504 - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance
  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 503 P6
HSM V-Press 503 eco
HSM V-Press 504 P1
HSM V-Press 504
HSM V-Press 605 P1
HSM V-Press 605
Order number: 6154104 6151251 6112164
Pressing power: 30 t 40 t 57 t
Maximum bale weight: 50 lb 60 lb 70 lb
Bale size (WxHxL): 500 x 850 x 700 " 600 x 500 x 700 " 600 x 600 x 800 "
Loading aperture (WxH): 700 x 505 " 700 x 470 " 800 x 495 "
Number of strappings: 2 2 3
Type of consumables: Umreifungsband Umreifungsband Umreifungsband
Motor: - 1,1 kW 1,5 kW
Voltage / Frequency: 230 V / 50 Hz 230 V / 50 Hz 400 V / 50 Hz
Cycle time: 30 s 27 s 21 s
Dimensions of machine (WxDxH): 953 x 679 x 1962 " 1020 x 812 x 1922 " 1198 x 823 x 1986 "
Machine weight: 250 lb 290 lb 485 lb

Consumable materials

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 40 - 12 Gigant/Dixi 15S/Dixi 16S/Dixi 18S/Dixi 6SL/V-Press 503/V-Press 504/V-Press 605/V-Press 610/V-Press 718 plus C/V-Press 818/V-Press 820/V-Press 825/V-Press 830
