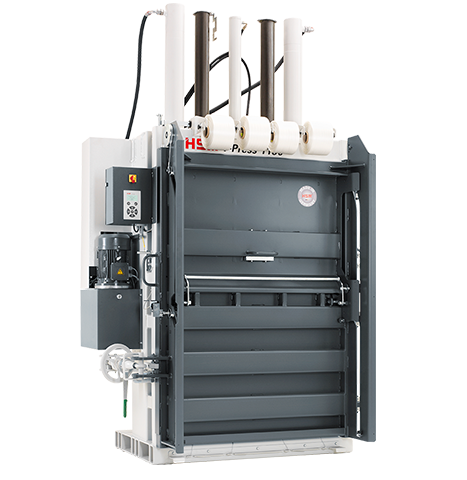

  • HSM V-Press 1160 Plus P1 PNG

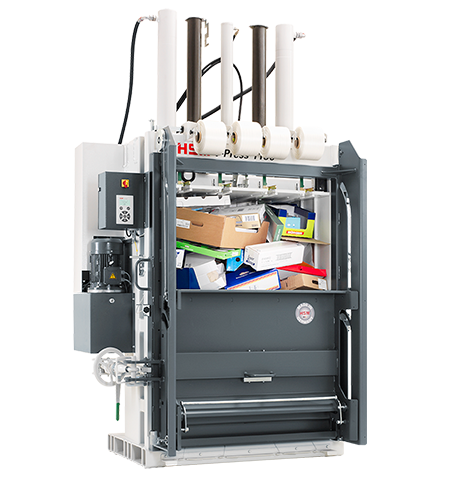

  • HSM V-Press 1160 Plus P2

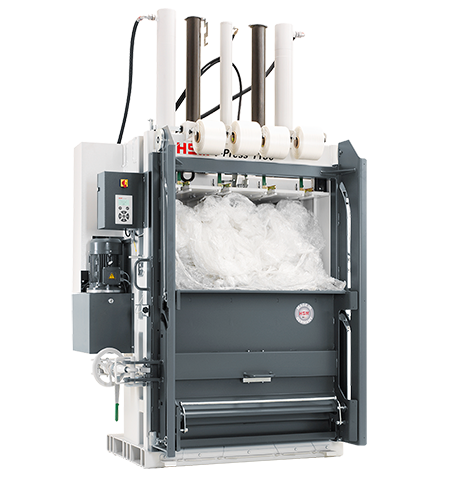

  • HSM V Press 1160 Plus P3
  • YouTube Video Thumbnail
  • HSM V-Press 1160 Plus P1 PNG
  • HSM V-Press 1160 Plus P2
  • HSM V Press 1160 Plus P3
  • HSM V-Press 1160 Plus P1 PNG
    play
Vertical balers

HSM V-Press 1160 plus

Weight
594 t
Weight
max: 550 lb
Weight
B: 1200 " H: 1100 " L: 1200 "
Weight
B: 1780 " T: 1568 " H: 2985 "
sliding door
  • double door
  • sliding door
handwheel
    Datasheet
    Request product

    Scroll to the desired section:

    Technical data Consumable materials
    Please select
    blocks.contact_search.dropdown_alt

    Product highlights

    Die HSM V-Press 1160 ist mit einem maximalen Ballengewicht von 550 kg das Spitzenmodell der HSM V-Press Serie mit starker Presskraft und absolut hoher Wirtschaftlichkeit.

    • V-Press - Eilgang
      With rapid traverse technology, the balers achieve short cycle times and support demand-oriented energy use in daily operation
    • Schiebetüre
      To fill the press, the upper half of the doors is pushed down and automatically opens after the compression process
    • V-Press - Handrad
      Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
    • V-Press - TCS
      HSM TCS (Torsion Control System) for monitoring press ram movement
    • V-Press - Automatikstart
      Automatic start of the pressing process after closing the door
    • Display
      Convenient membrane keypad with text display, which shows the current status of the machine
    • V-Press - Verpresst Kartonage/Folie
      Suitable for cardboard as well as film
    • Hoch verdichtete Ballen
      Optimised bale dimensions and bale weights for efficient storage, transport and direct commercialisation
    • Umreifung Draht oder Band
      Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements

    Products in comparison

    Product attributes
    HSM V-Press 1160 eco P1
    HSM V-Press 1160 eco
    HSM V-Press 1160 Plus P1 PNG
    HSM V-Press 1160 plus
    HSM V-Press 1160 max P1
    HSM V-Press 1160 max
    Order number: 6044114 6044214 6044314
    Pressing power: 594 t 594 t 594 t
    Maximum bale weight: 550 lb 550 lb 550 lb
    Bale size (WxHxL): 1200 x 1100 x 1200 " 1200 x 1100 x 1200 " 1200 x 1100 x 1200 "
    Loading aperture (WxH): 1195 x 650 " 1195 x 650 " 1195 x 650 "
    Number of strappings: 4 4 4
    Type of consumables: Ösendraht Ösendraht Ösendraht
    Motor: 4 kW 4 kW 4 kW
    Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz 400 V / 50 Hz
    Cycle time: 25 s 25 s 25 s
    Dimensions of machine (WxDxH): 1780 x 1388 x 2985 " 1780 x 1568 x 2985 " 1780 x 1568 x 2985 "
    Machine weight: 2300 lb 2427 lb 2450 lb

    Consumable materials

    • Consumable Materials
      Pre-looped wire 2,80x4400 - V-Press 1160
