Vertical balers

HSM V-Press 860 S

  • HSM V Press 860 S P1

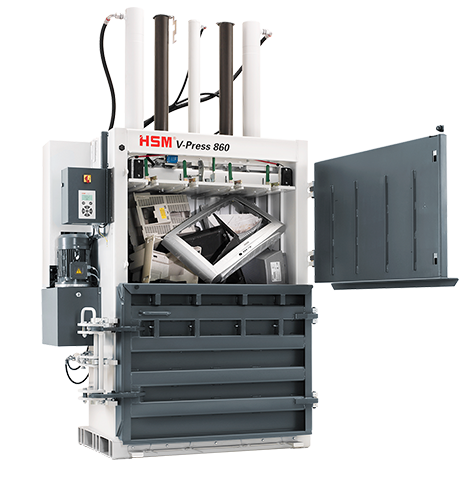

  • HSM V-Press 860 S P2

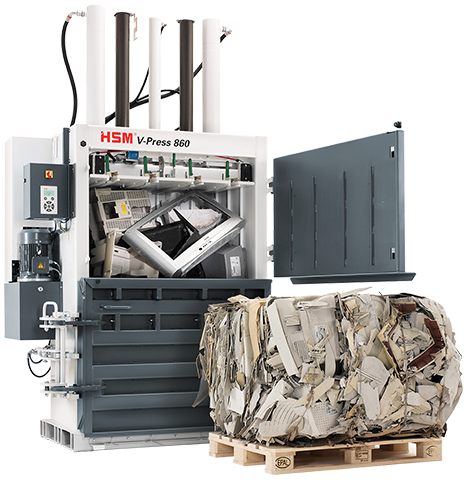

  • HSM V-Press 860 S P3
  • YouTube Video Thumbnail
  • HSM V Press 860 S P1
  • HSM V-Press 860 S P2
  • HSM V-Press 860 S P3
  • HSM V Press 860 S P1
    play
Vertical balers

HSM V-Press 860 S

Weight
434 t
Weight
max: 230 lb
Weight
B: 1200 " H: 780 " L: 1200 "
Weight
B: 1868 " T: 1076 " H: 2985 "
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

Das Modell HSM V-Press 860 S ist für die Verdichtung von Hartkunststoffen (z. B. Monitor- und TV-Gehäuse) sowie expansiven Kunststofffolien konzipiert. (Andere Materialien auf Anfrage.)

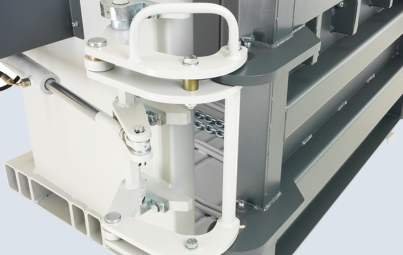

  • V-Press 860P/S - Verstärkter Presskasten
    Reinforced press chamber and hydraulic door lock - Convenient opening and closing, no manual effort required
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • V-Press - Eilgang
    With rapid traverse technology, the balers achieve short cycle times and support demand-oriented energy use in daily operation

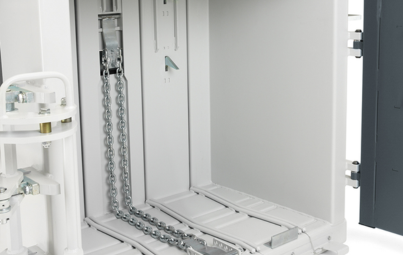

  • Kettenauswerfer
    Robust mechanical bale ejector chain
  • Optimiertes Verpressen
    Massive press ram and extremely robust press plate guidance

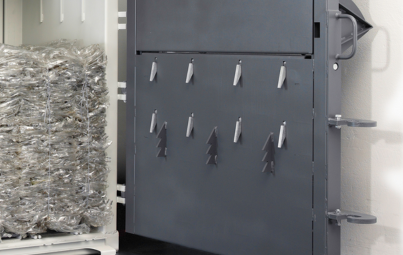

  • V-Press - Rückhaltekrallen doppelt
    Double quantity of retaining claws optimize the compression of the pressing material and reduce the number of loading actions
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement

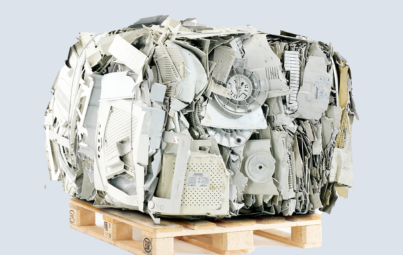

  • V-Press - Umreifung Draht Hartkunststoff
    Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements

Technical data

Product attributes

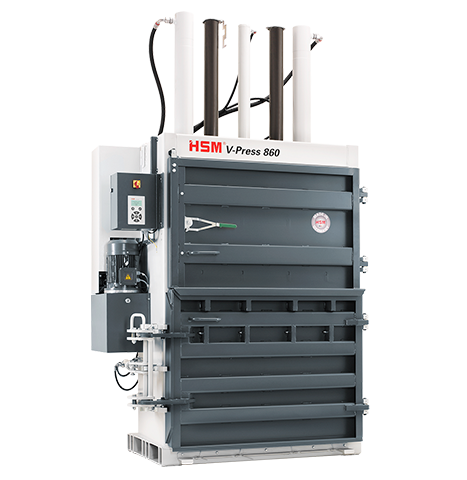

HSM V Press 860 S P1
HSM V-Press 860 S
Order number: 6048614
Pressing power: 434 t
Maximum bale weight: 230 lb
Bale size (WxHxL): 1200 x 780 x 1200 "
Loading aperture (WxH): 1195 x 650 "
Number of strappings: 4
Type of consumables: Ösendraht
Motor: 4 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time: 25 s
Dimensions of machine (WxDxH): 1868 x 1076 x 2985 "
Machine weight: 2290 lb

Consumable materials

  • Consumable Materials
    Pre-looped wire 2,80x3700 - V-Press 840/V-Press 860/V-Press 860 S/P/V-Press 860 max C/VL 225/VL 500
