Vertical balers

HSM V-Press 718 plus C

  • HSM_V-Press_718_plus_C_P2_PNG.png
  • HSM_V-Press_718_plus_C_P3_PNG.png
  • HSM_V-Press_718_plus_C_P2_PNG.png
  • HSM_V-Press_718_plus_C_P3_PNG.png
Vertical balers

HSM V-Press 718 plus C

Weight
180 t
Weight
max: 200 lb
Weight
B: 800 " H: 700 " L: 1100 "
Weight
B: 1780 " T: 938 " H: 2095 "
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

Die leistungsstarke Vertikal-Ballenpresse mit besonders großer Einfüllöffnung und niedriger Bauhöhe. Die kompakte Anlage mit hoher Presskraft ist als Plug-and-Play konzipiert und kann am Aufstellort sofort in Betrieb genommen werden.

  • The powerful system is designed as Plug&Press and can be put into operation immediately at the installation location

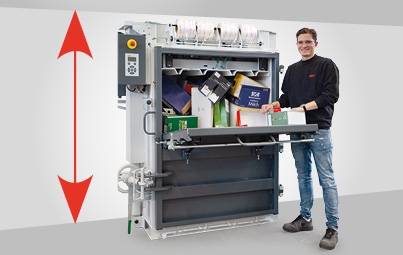

  • Operation of the vertical baler even in rooms with low ceilings thanks to the baler´s low height
  • V-Press_718_HP_Highlight_Füllklappe.jpg

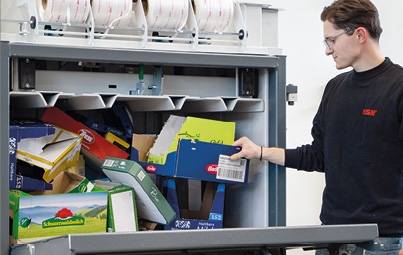

    To fill the press, the upper half of the doors is folded down
  • V-Press_718_HP_Highlight_Optimiertes_Verpressen.jpg

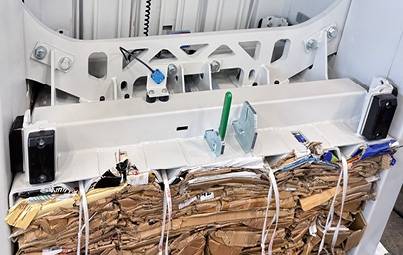

    Solid press plate and extremely stable press plate guidance
  • V-Press - Automatikstart
    Automatic start of the pressing process after closing the door
  • Display
    Convenient membrane keypad with text display, which shows the current status of the machine
  • V-Press - Handrad
    Hand wheel door lock - Easy to handle thanks to counter-rotating thread for quick opening and closing
  • V-Press - TCS
    HSM TCS (Torsion Control System) for monitoring press ram movement
  • V-Press - Umreifung Polyesterband
    Manual bale strapping with continuous polyester tape
  • V-Press - Verpresst Kartonage/Folie
    Suitable for cardboard as well as film

Products in comparison

Product attributes
HSM V-Press 610 P1
HSM V-Press 610
HSM V-Press 718 plus C
HSM V-Press 818 plus
HSM V-Press 818 plus
Order number: 6110174 6042414 6050414
Pressing power: 120 t 180 t 185 t
Maximum bale weight: 100 lb 200 lb 200 lb
Bale size (WxHxL): 600 x 600 x 800 " 800 x 700 x 1100 " 700 x 780 x 1200 "
Loading aperture (WxH): 800 x 495 " 1100 x 500 " 1195 x 530 "
Number of strappings: 3 4 4
Type of consumables: Umreifungsband Umreifungsband Umreifungsband
Motor: - - 4 kW
Voltage / Frequency: 400 V / 50 Hz 400 V / 50 Hz 400 V / 50 Hz
Cycle time: 22 s 26 s 27 s
Dimensions of machine (WxDxH): 1198 x 823 x 1986 " 1780 x 938 x 2095 " 1700 x 1046 x 2370 "
Machine weight: 540 lb 980 lb 1070 lb

Consumable materials

  • Verbrauchsmaterial_Umreifungsband.png
    Consumable Materials
    Strapping tape WG 40 - 12 Gigant/V-Press 504/V-Press 605/V-Press 610/V-Press 818/V-Press 820/V-Press 825
