HSM HL 3521 T

Horizontal balers

HSM HL 3521 T

Horizontal balers

HSM HL 3521 T

320 t

max: 850 lb

B: 800 " H: 1000 " L: var. 1200 "

L: 8100 " B: 1660 " H: 2485 "

Datasheet

Request product

Scroll to the desired section:

Technical data

Consumable materials

Product highlights

Das Modell HSM HL 3521 T kann z. B. über ein Förderband beschickt werden und ist speziell für die Verpressung von Reifen konzipiert. Selbstverständlich können alle anderen Verpackungsmaterialien ebenfalls verpresst werden.

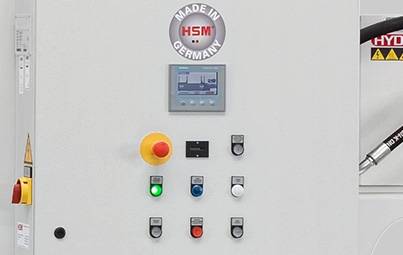

Multilingual operational guidance and Stored-program controller PLC

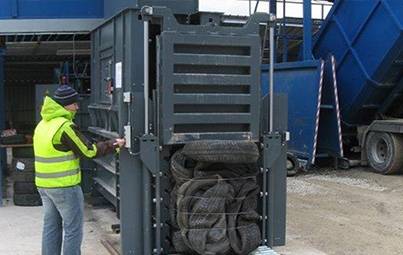

Hydraulic counterplate for bale removal ensures optimum operating convenience and safety

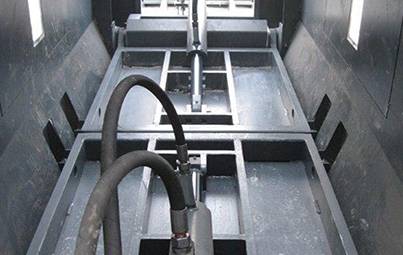

Hydraulic loading flap for maximum operating comfort
Manual bale strapping with continuous polyester tape. HL 3521 S optionally also with eyelet wire or tape.

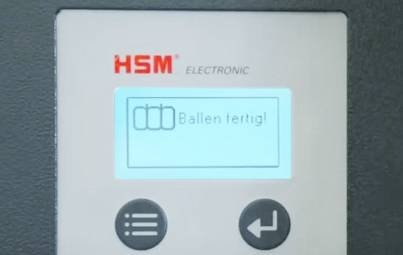

Automatic information as soon as enough material for a bale has been compressed and the bale can be tied

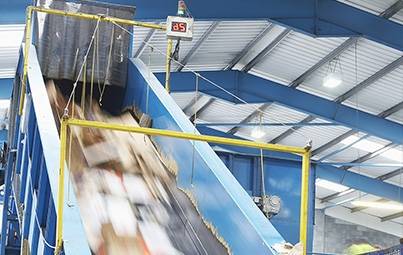

Suitable for continuous loading with conveyor belt or similar
Specially designed to compact tyres
The unique design and controllable positioning of the press ram allows for easy cleaning and servicing

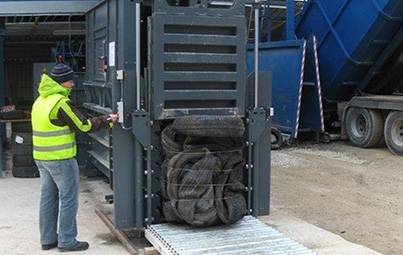

Safeguarding of the operating area with protective grid for maximum operator safety

Technical data

Product attributes	HSM HL 3521 T
Order number:	6270000
Pressing power:	320 t
Maximum bale weight:	850 lb
Bale size (WxHxL):	800 x 1000 x var. 1200 "
Loading aperture (WxH):	800 x 2100 "
Infeed height:	- "
Number of strappings:	5
Type of consumables:	Draht
Motor:	22 kW
Voltage / Frequency:	400 V / 50 Hz
Cycle time:	44 s
Dimensions of machine (WxDxH):	8100 x 1660 x 2485 "
Machine weight:	8100 lb

Consumable materials

Consumable Materials

Quicklink-Draht 2,95x4200 - HL 3521 S/HL 3521 T
