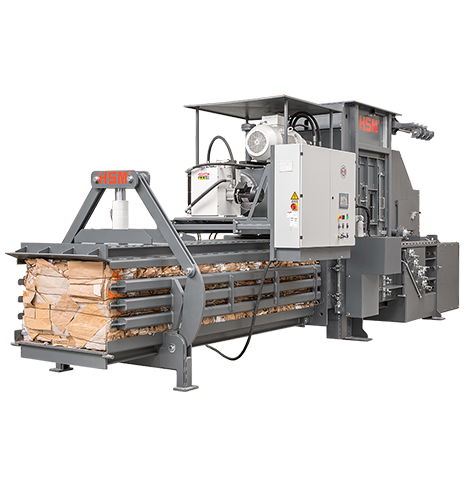

HSM VK 5016

Channel baling presses

500 t

1100 x 750 "

Scroll to the desired section:

Für die professionelle Entsorgungswirtschaft oder größere Industrieanwendungen – mit hohen Durchsatzleistungen bis ca. 485 m³/h

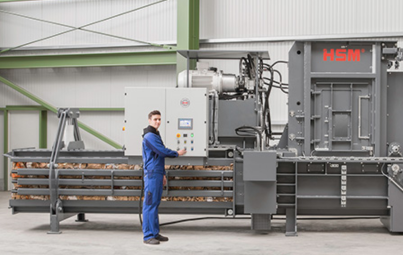

With large loading aperture for optimised feeding methods (1600 mm length)
Fully automatic 5-fold strapping for optimal bale result also with expansive materials
Available as an option with frequency-regulated drive – saves 40 % of the energy used by standard drives
Control of the pressing process via light barrier. Suitable for continuous loading with conveyor belt, air feeding or similar
Suitable for cardboard, plastic film and compressing DSD goods, UBC as well as PET bottles (other materials on request)
Versatile solution for materials up to approx. 50 kg /m³ bulk weight
Optimally adjusted software for different materials guarantees high bale quality even when material is frequently changed
Solid steel construction with highly wear resistant steel parts inside the press chamber and press channel

Product attributes	HSM VK 5012	HSM VK 5016	HSM VK 6015
Order number:	6461003	6462000	6442000
Pressing power:	500 t	500 t	720 t
Bale weight:	300 x 480 lb	- x - lb	260 x 470 lb
Bale size (LxWxH):	1100 x 750 "	1100 x 750 "	750 x 750 "
Strapping:	4	4	4
