Channel baling presses

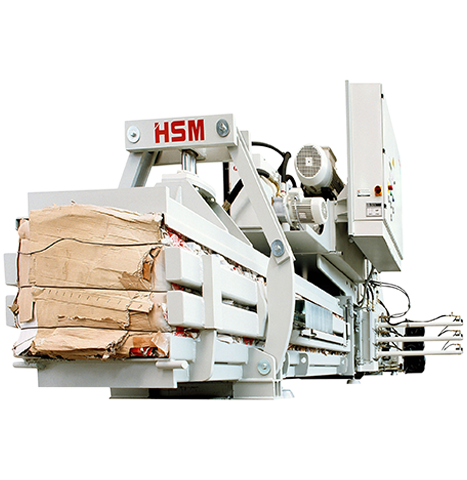

HSM VK 1206

  • HSM_VK1206_P1_PNG.png
  • YouTube Video Thumbnail
  • HSM_VK1206_P1_PNG.png
  • HSM_VK1206_P1_PNG.png
    play
Channel baling presses

HSM VK 1206

Weight
159 t
Weight
max: 200 lb
Weight
B: 750 " H: 500 " L: 1200 "
Weight
3
Datasheet
Request product

Scroll to the desired section:

Technical data Consumable materials
Please select
blocks.contact_search.dropdown_alt

Product highlights

Für Industrieanwendungen mit kleinem bis mittlerem Materialaufkommen - Durchsatz bis ca. 99 m³/h

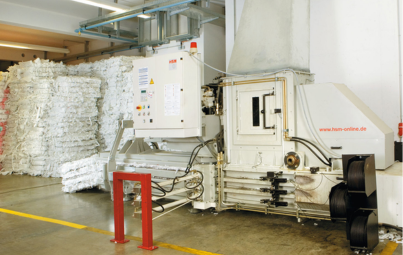

  • Luftbeschickung
    Optimal for connecting to air feeding systems (fast cycle times)
  • VK 3008 Presse
    Suitable for continuous loading with conveyor belt, air feeding or similar
  • Bedienseite
    Operating side can be selected

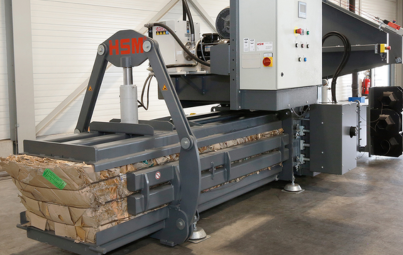

  • kompakte Bauweise
    Very low space requirement thanks to compact and sturdy design
  • Integration Fertigung
    Integration into automated industrial production processes
  • Kartonage, Folie, PET
    Particularly suitable for cardboard, plastic film and PET bottles
  • Lichtschranke
    Control of the pressing process via light barrier
  • Option manuelle Umreifung
    Available as an option with manual strapping

Products in comparison

Product attributes
HSM AK 807 M4
HSM AK 807
HSM VK 1206
HSM VK 1210
Order number: 6424000 6618001 6617001
Pressing power: 82 t 159 t 159 t
Maximum bale weight: 60 lb 200 lb 200 lb
Bale size (WxHxL): 500 x 500 x 800 " 750 x 500 x 1200 " 750 x 500 x 1200 "
Number of strappings: 3 3 3
Strapping material: Vertikal Horizontal Horizontal

Consumable materials

  • Consumable Materials
    Strapping wire 2,8 mm 40 Kg - VK 12/VK 23/VK 30/VK 42
