HSM PF 1200

PET Perforators

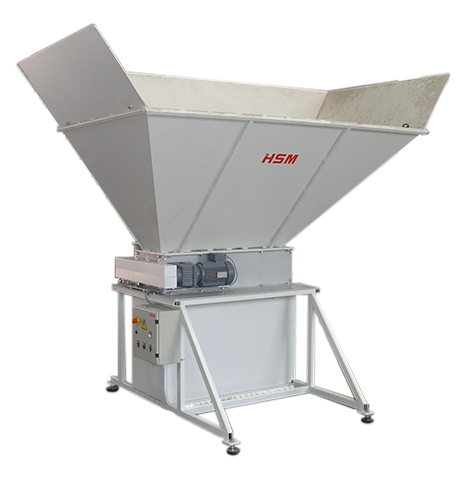

HSM PF 1200

1200 "

75000

1560 x 1200 x 500 "

8 hp

Datasheet

Request product

Product highlights

Die leistungsstarken HSM Perforatoren durchlöchern PET-Flaschen vor ihrer Verpressung und sorgen für optimal kompakte Ballen. Durch ihre hohen Durchsatzleistungen und ihr attraktives Preis-Leistungs-Verhältnis sind die HSM PET Perforatoren PF 600-4 und PF 1200-4 die wirtschaftliche Ergänzung zu HSM Entsorgungssystemen.

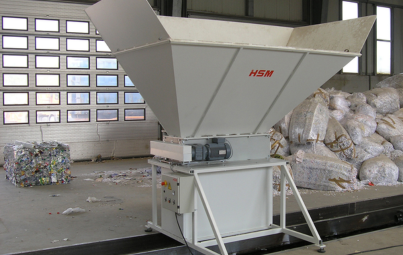

Throughput per hour up to 75 000 PET bottles (1 litre)
Ideal as an option for the HSM VK- / AK channel baling presses or alternatively as an independent system

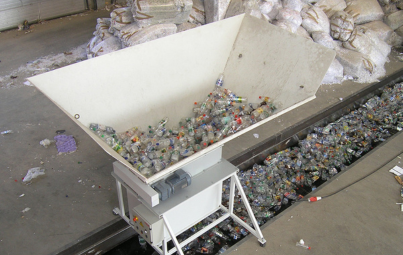

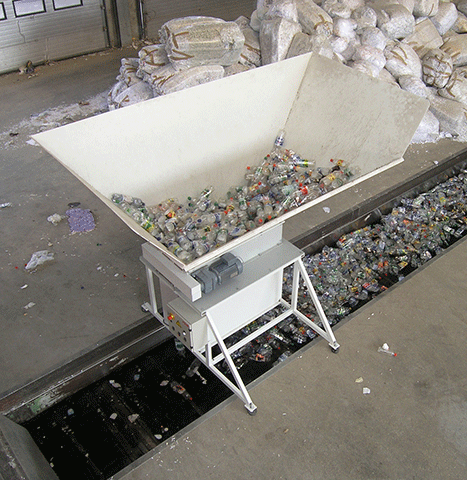

Applicable for all systems using underframe and hopper with conveyor-belt, also possible for retrofitting to existing systems
Perforation of empty and/or full plastic bottles (max. approx. 2.5 litre) is possible, with or without caps
Perforation of the plastic bottles achieves optimum compression for reduced transport and storage costs

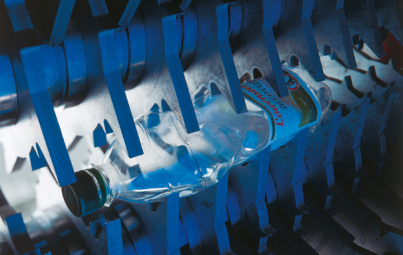

Sturdy cutting unit – will handle the occasional glass bottle
Perforator may be mounted in a loading chute, moved manually or automatically / hydraulically to allow compression of alternative materials which do not need perforation

Products in comparison

Product attributes	HSM PF 600	HSM PF 1200
Order number:	1776000	1775000
Working width:	600 "	1200 "
Throughput per hour PET bottles (1 litre):	37500	75000
Dimensions of machine (WxDxH):	990 x 1200 x 500 "	1560 x 1200 x 500 "
Driving power:	6 hp	8 hp
