HSM DE 1-8 dust extractor
The compact and powerful dust extractor in dust classification M is the perfect addition for clean operations with the HSM ProfiPack P425 packaging machine. Cardboard and dust particles are extracted reliably.
The use of high quality materials combined with HSM's proven "Made in Germany" high manufacturing standard ensures that the product is both safe and durable for the user.
The dust extractor is suitable for connecting to the packaging machine HSM ProfiPack P425, together with the adapter set for extraction.
The dust extractor meets the requirements of dust classification M.
The dust extractor is operated with a single-phase power connection.
The integrated pulse-jet filter cleaning nozzle enables the long life filter cartridges to be cleaned easily.
The quiet operating mode minimises noise development in the workplace which is an important consideration for your staff.

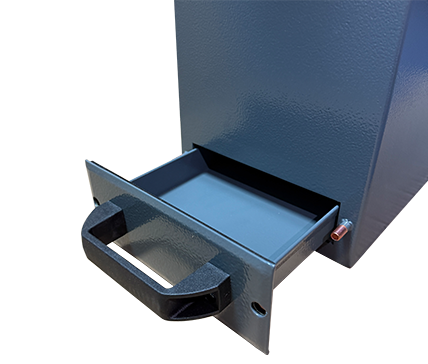

The disposal of the dust is simple, due to the mobile dust collection drawer with a collection bin which can be easily removed.
The handle enables the machine to be used for mobile applications.
Technical data "Dust extractor HSM DE 1-8 - P425"
|Driving power:||1.34 HP|
|Voltage / Frequency:||110-120 V / 50-60 Hz|
|Container volume / collecting:||0.3 gal|
|Noise level (idle operation):||ca. 71 dB(A)|
|Width x Depth x Height:||15.35" x 8.27" x 19.69"|
|Max. negative pressure:||19000 Pa|
|Max. volume flow:||117.7 cfm|
|Filter area:||1240 in²|
|Use for device type:||P425|
