Digital Data Media Shredders

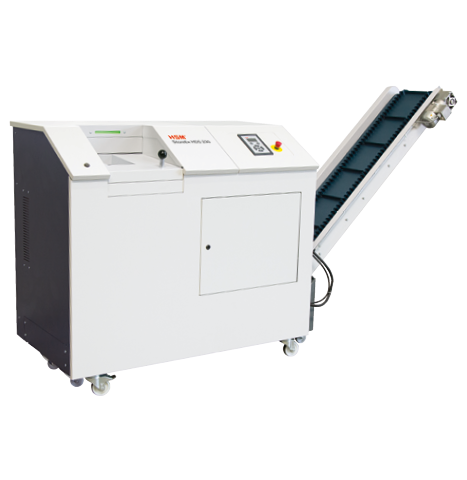

HSM StoreEx HDS 230 - 20 x 40-50 mm

  • StoreEx_HDS_230_conveyor_belt_Produktbild_1.png
  • StoreEx_HDS_230_conveyor_belt_Produktbild_2.png
  • StoreEx_HDS_230_conveyor_belt_Produktbild_1.png
  • StoreEx_HDS_230_conveyor_belt_Produktbild_2.png
Digital Data Media Shredders

HSM StoreEx HDS 230 - 20 x 40-50 mm

Icon CD
Icon Diskette
Icon Festplatte
Icon EC-Karte
Icon Magnetband
Datasheet
Request product

Scroll to the desired section:

Technical data
Please select
blocks.contact_search.dropdown_alt

Product highlights

Secure, data protection compliant and economical. This digital data media shredder shreds digital data carriers into little particles and makes data recreation virtually impossible.

  • StoreEx Anti-Materialstau Funktion (HDS)
    The automatic reverse function in the shredder eliminates material jams and ensures your shredding operations run smoothly.

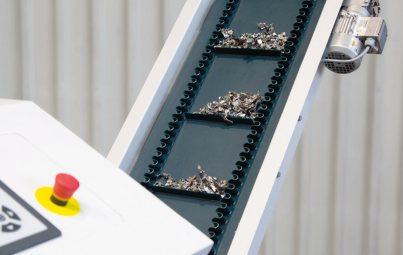

  • StoreEx Auslaufförderband für HDS
    The discharge conveyor belt makes the collection of the shredded material easy and convenient. Any standard container can be used to collect the material at the end of the conveyor belt.
  • StoreEx CD-Direkteingabe
    Thin optical, magnetic and electronic data media can be shredded comfortably and quickly using the input slot.
  • StoreEx Dezentrale Vernichtung (HDS 230)
    Data media can be shredded easily in decentralised locations with this machine.
  • StoreEx Energieeffizienter Dauerbetrieb
    This powerful machine provides an excellent cutting performance combined with reliable continuous operation and a low noise level
  • StoreEx Funktionsmodi (HDS 150)
    The selection of the correct functional mode will always ensure the maximum throughput for the respective material type.
  • StoreEx Komfortable Arbeitshöhe (HDS 230)
    The large LED display enables the continuous input of media at a comfortable working height.
  • StoreEx Not-Aus-Schalter
    It may be necessary to stop the machine immediately so we have equipped the device with an emergency off switch which, when activated, will do just this.
  • StoreEx Vollstahl-Schneidwellen
    The induction-hardened, solid steel cutting rollers are robust and ensure a high level of durability!

Products in comparison

Product attributes
HSM StoreEx HDS 230 - 20 x 40-50 mm
HSM StoreEx HDS 230 - 20 x 40-50 mm
HSM StoreEx HDS 230 - 11.5 x 26 mm
Order number: 1778127 1778127F 1777127F
EAN: 4026631074209 4026631075879 4026631075893
Cutting type: particle cut particle cut particle cut
Cutting size: 0,78" x 1.5-2" 0,78" x 1.5-2" 0,39" x 1-1.18"
Security level (DIN 66399 / ISO/IEC 21964): E-2|H-4|O-1|T-2 E-2|H-4|O-1|T-2 E-2|H-5|O-2|T-3
Cutting capacity HDD up to 3,5" (items/h): 360 360 280
Cutting capacity HDD up to 2,5" (items/h): 1500 1500 280
Cutting capacity CD/DVD (items/h): 7500 7500 6000
Cutting capacity magnetic tapes (items/h): 500 500 420
Loading aperture (LxWxH): 11.81 x 6.5 x 2.36 " 11.81 x 6.5 x 2.36 " 11.81 x 6.5 x 2.36 "
Noise level (idle operation): ca. 49 dB(A) ca. 53 dB(A) ca. 55 dB(A)
Voltage / Frequency: 208 V / 60 Hz 208 V / 60 Hz 208 V / 60 Hz
Container volume / collecting: 11.9 gal - gal - gal
Loading aperture (WxH): 6.5 x 2.36 " 6.5 x 2.36 " 6.5 x 2.36 "
Width x Depth x Height: 62.2 x 35.63 x 55.91 " 113.35 x 35.63 x 67.4 " 113.35 x 35.63 x 67.4 "
Machine weight: 1615.99 lb 1895.97 lb 2700.66 lb
