Digital Data Media Shredders

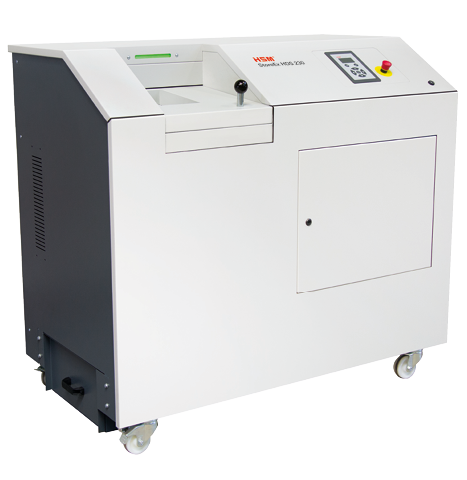

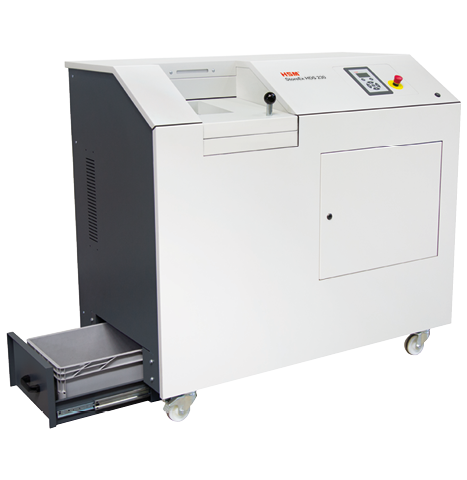

HSM StoreEx HDS 230 - 11.5 x 26 mm

  • StoreEx_HDS_230_bin_Produktbild_1.png
  • StoreEx_HDS_230_bin_Produktbild_2.png
  • StoreEx_HDS_230_bin_Produktbild_1.png
  • StoreEx_HDS_230_bin_Produktbild_2.png
Digital Data Media Shredders

HSM StoreEx HDS 230 - 11.5 x 26 mm

Icon CD
Icon Diskette
Icon Festplatte
Icon EC-Karte
Icon Magnetband
Icon USB-Stick
Weight
11.9 gal
Datasheet
Request product

Scroll to the desired section:

Technical data
Please select
blocks.contact_search.dropdown_alt

Product highlights

Secure, data protection compliant and economical. This digital data media shredder digital data carriers into tiny particles and makes data recreation virtually impossible.

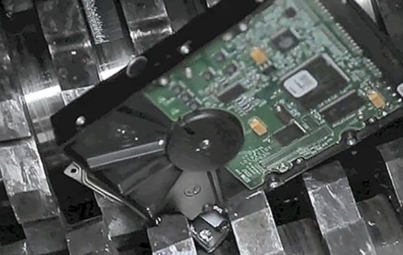

  • StoreEx Anti-Materialstau Funktion (HDS)
    The automatic reverse function in the shredder eliminates material jams and ensures your shredding operations run smoothly.

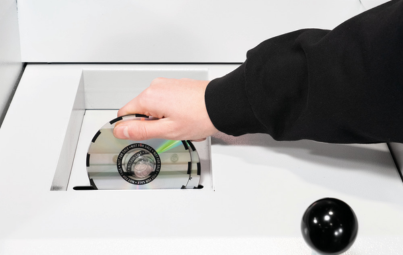

  • StoreEx CD-Direkteingabe
    Thin optical, magnetic and electronic data media can be shredded comfortably and quickly using the input slot.
  • StoreEx Dezentrale Vernichtung (HDS 230)
    Data media can be shredded easily in decentralised locations with this machine.
  • StoreEx Energieeffizienter Dauerbetrieb
    This powerful machine provides an excellent cutting performance combined with reliable continuous operation and a low noise level

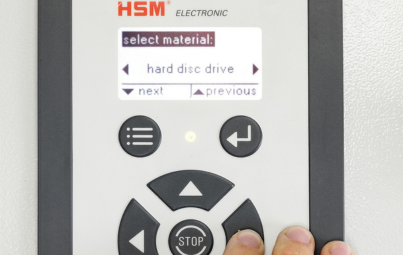

  • StoreEx Funktionsmodi (HDS 150)
    The selection of the correct functional mode will always ensure the maximum throughput for the respective material type.
  • StoreEx Herausnehmbarer Auffangbehälter
    The waste container can be easily removed and emptied.

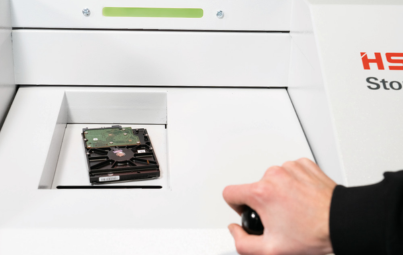

  • StoreEx Komfortable Arbeitshöhe (HDS 230)
    The large LED display enables the continuous input of media at a comfortable working height.

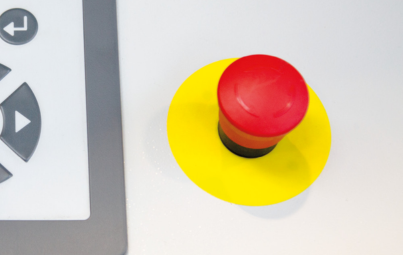

  • StoreEx Not-Aus-Schalter
    It may be necessary to stop the machine immediately so we have equipped the device with an emergency off switch which, when activated, will do just this.
  • StoreEx Vollstahl-Schneidwellen
    The induction-hardened, solid steel cutting rollers are robust and ensure a high level of durability!

Products in comparison

Product attributes
HSM StoreEx HDS 230 - 20 x 40-50 mm
HSM StoreEx HDS 230 - 11.5 x 26 mm
HSM StoreEx HDS 230 - 11.5 x 26 mm
Order number: 1778127 1777127 1777127F
EAN: 4026631074209 4026631074216 4026631075893
Cutting type: particle cut particle cut particle cut
Cutting size: 0,78" x 1.5-2" 0,39" x 1-1.18" 0,39" x 1-1.18"
Security level (DIN 66399 / ISO/IEC 21964): E-2|H-4|O-1|T-2 E-2|H-5|O-2|T-3 E-2|H-5|O-2|T-3
Cutting capacity HDD up to 3,5" (items/h): 360 280 280
Cutting capacity HDD up to 2,5" (items/h): 1500 1150 280
Cutting capacity CD/DVD (items/h): 7500 6000 6000
Cutting capacity magnetic tapes (items/h): 500 420 420
Loading aperture (LxWxH): 11.81 x 6.5 x 2.36 " 11.81 x 6.5 x 2.36 " 11.81 x 6.5 x 2.36 "
Noise level (idle operation): ca. 49 dB(A) ca. 50 dB(A) ca. 55 dB(A)
Voltage / Frequency: 208 V / 60 Hz 208 V / 60 Hz 208 V / 60 Hz
Container volume / collecting: 11.9 gal 11.9 gal - gal
Loading aperture (WxH): 6.5 x 2.36 " 6.5 x 2.36 " 6.5 x 2.36 "
Width x Depth x Height: 62.2 x 35.63 x 55.91 " 62.2 x 35.63 x 55.91 " 113.35 x 35.63 x 67.4 "
Machine weight: 1615.99 lb 2420.67 lb 2700.66 lb
