Dust extractor HSM DE 1-8 - P425

Accessories

Dust extractor HSM DE 1-8 - P425

P425

Datasheet

Request product

Scroll to the desired section:

Technical data

Product highlights

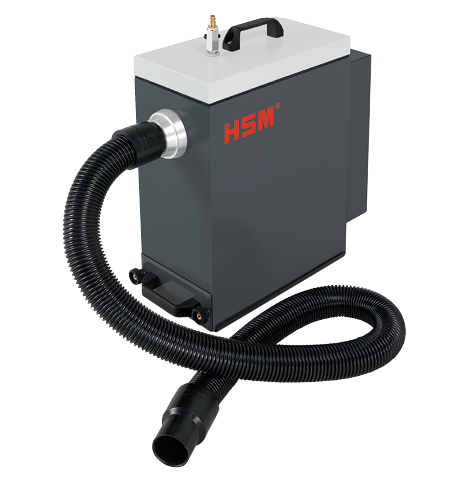

The compact and powerful dust extractor in dust classification M is the perfect addition for clean operations with the HSM ProfiPack P425 packaging machine. Cardboard and dust particles are extracted reliably.

The dust extractor is suitable for connecting to the packaging machine HSM ProfiPack P425, together with the adapter set for extraction.
The use of high quality materials combined with HSM's proven "Made in Germany" high manufacturing standard ensures that the product is both safe and durable for the user.
The quiet operating mode minimises noise development in the workplace which is an important consideration for your staff.

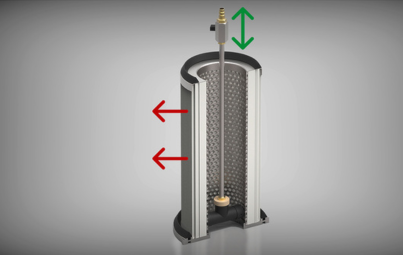

The integrated pulse-jet filter cleaning nozzle enables the long life filter cartridges to be cleaned easily.
The dust extractor meets the requirements of dust classification M.
The disposal of the dust is simple, due to the mobile dust collection drawer with a collection bin which can be easily removed.
The dust extractor is operated with a single-phase power connection.
The handle enables the machine to be used for mobile applications.

Technical data

Product attributes	Dust extractor HSM DE 1-8 - P425
Order number:	2412113
EAN:	4026631070942
Related product line:	-
Use for device type:	P425
Dust classification:	M
Container volume / collecting:	0.3 gal
Filter area:	0.8
Max. negative pressure:	19000
Max. volume flow:	200
Noise level (idle operation):	ca. 71 dB(A)
Driving power:	110-120 V / 50-60 Hz hp
Voltage / Frequency:	110-120 V / 50-60 Hz
Width x Depth x Height:	15.35 x 8.27 x 19.69 "
